Earthle Earthing Desk Mat

Connecting, using and washing. Sorted in a couple of minutes.

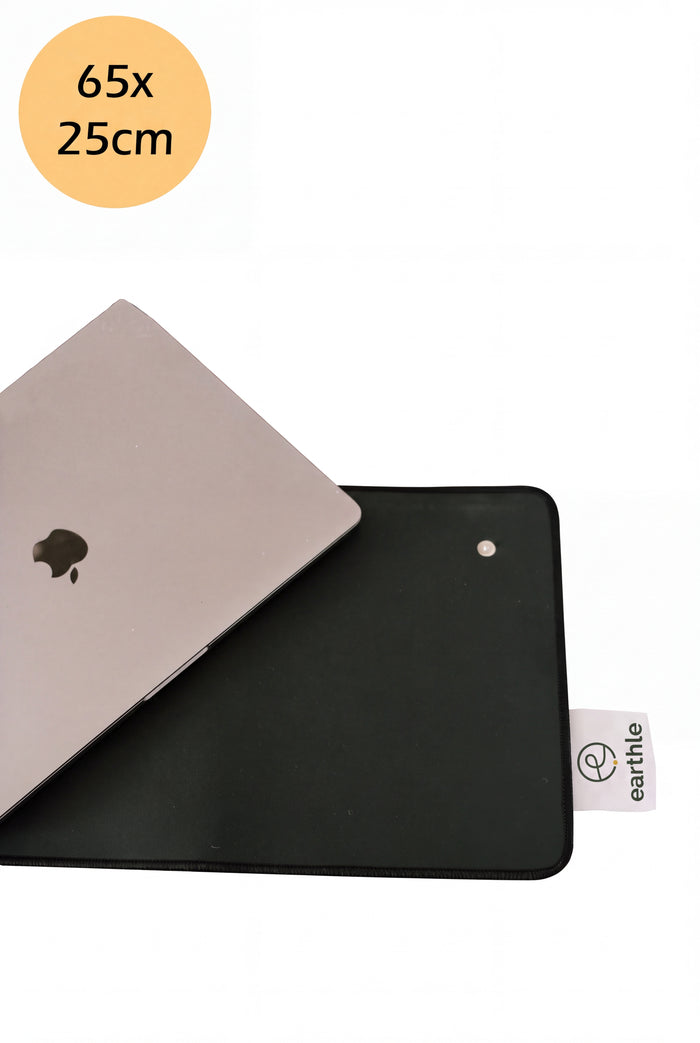

Earthle earthing desk mat in vegan leather with a laptop on top, 65 x 25 cm

The desk mat earths you during the hours you are sitting at your desk anyway. It lies in front of your keyboard or under your feet, and that is all it takes. Below you will find how to connect it, how to clean it, and what to do if you have no earthed socket.

Connected in five steps

  1. Take the mat out of the packaging. The earthing cable with plug is packed loose alongside it.

    The desk mat comes out of the packaging
  2. Put the mat where you want to use it: on your desk in front of the keyboard, or on the floor under your desk chair.

    The desk mat lies on the desk
  3. Click the earthing cable onto the press stud on the mat. You will feel it lock into place.

    The earthing cable clicks onto the press stud of the mat
  4. Put the plug into an earthed socket. Only the earth contact is used, never the live wire. This works on earthed sockets across Europe.

    The plug goes into an earthed socket
  5. Rest your wrists or your bare feet on it. The contact runs through your skin, so shoes and socks break it.

    Wrists resting on the earthing desk mat

Thirty to forty minutes a day is enough. An ordinary morning at your desk goes well past that, and more does no harm.

Good to know

Above or below the desk, both work. On the desk the contact comes through your wrists while you type. On the floor through the soles of your feet, shoes off. Move it around as you like: it is the same mat.

Socket not next to your desk? The cable is 4.6 metres, so usually you will reach. If it is further away, the fifteen metre extension cable covers the rest.

Building up slowly is fine. If you are sensitive, you may feel a light tingling in your hands or feet the first few times. Start with half an hour a day and build it up. There is more about this in what you can feel and expect and in earthing for beginners.

Cleaning

The mat is vegan faux leather and rubber and cannot go in the washing machine. Clean it with a mild, natural soap well diluted with water. Wipe the mat with a damp cloth or a soft sponge.

Use no scouring agent and no aggressive cleaner. Those attack the top layer, and it is that layer which conducts.

No earthed socket?

An earthed socket has metal pins at the top and bottom as well as the two holes. If you cannot see those, the socket is not earthed.

On the left an earthed socket with metal pins, on the right one without

If there is none in the house, there are two other ways. With the earthing pin you push the earth point into the ground outside and bring it in on fifteen metres of cable. With the alligator clip you clamp it onto an unpainted heating pipe or radiator. Both are explained in earthing without an earthed socket.

Why there is a resistor in the plug

Inside the plug sits a 100,000 ohm resistor, between the earth contact of the socket and your product. It is there in case a socket was ever wired incorrectly.

Earthing works by equalising voltage, and that takes almost no current. A hundred thousand ohms does not get in the way of that: it conducts more than well enough. The resistor only limits what could flow in the worst case.

The live wire of the socket is never used. So no current can run through your product.

Check it yourself with a multimeter

If you want to be sure the connection is sound, you can measure it. Take the plug out of the socket first: you are measuring the product itself, not the mains.

  1. Set the multimeter to resistance, 200 kΩ range.
  2. Hold one probe on the conductive surface of your product, or on the press stud where the cable clicks on.
  3. Hold the other probe on the round earth pin of the plug.

You should read around 100 kΩ. That is the built-in resistor, and it means the whole chain is unbroken.

If it reads infinite or OL, a connection is missing somewhere: check that the cable is properly clicked on. If it reads close to zero, the resistor is missing, and we would like to hear about that.

Stuck somewhere?

Most questions are already answered on our questions page. If yours is not there, send us a message.
